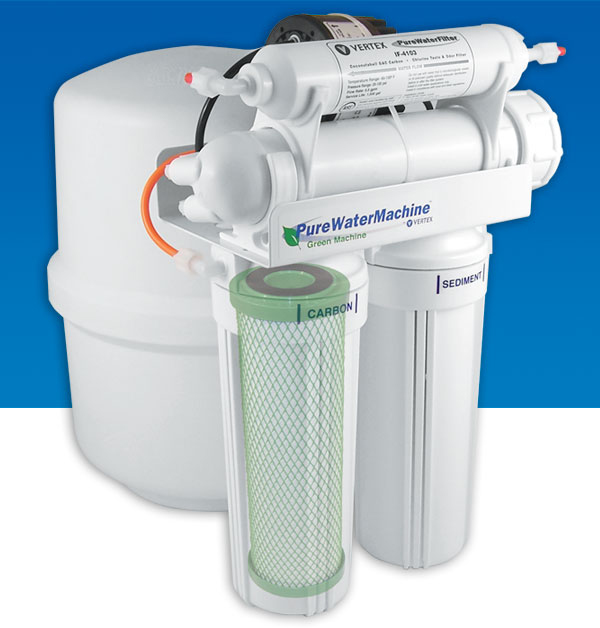

Eco-Friendly RO Systems

Vertex offers four and five-stage under-sink reverse osmosis filter systems specifically designed to reduce wastewater by up to 85%.

Both models use environmentally friendly, NSF and WQA certified Greenblock® filtration media that significantly reduces the carbon footprint compared to traditional carbon filters. The Greenblock filters contain eco-friendly coconut-shell Greencarbon™ that reduces harmful greenhouse gas emissions in the manufacturing.

The RO membrane removes an average of 95% of the dissolved solids from the incoming water while sending up to 85% less wastewater to the drain using its new Energy-Recovery-Valve.

The Green Machine Supreme fits under most sinks. It delivers clean, great-tasting water whenever you need it, eliminating the need for bottled water and the negative environmental impact associated with it.

The 5-stage system is designed to ensure water quality, membrane performance, and filter life where the incoming water contains a high amount of sediment, as in some well water systems. An extra pre-filter stage is added before the membrane. The design extends the time between filter changes.

Features:

• Eco-Friendly Greenblock® carbon filtration
• Up to 85% less waste-water to drain
• City water pressure operates the RO membrane
• Auto shut-off valve (conserves water)
• Flow restrictor – modified capillary
• Long reach, non-airgap chrome faucet
• Feed water connector – threaded inlet adapter with metal ball-valve
• Drain connection included
• 1/4-inch flexible polyethylene tubing with JACO compression fittings
• Two-year limited warranty

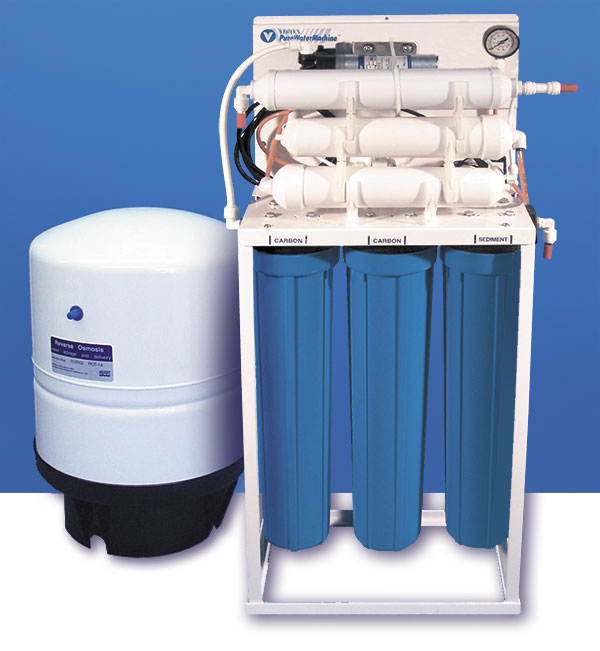

For Drinking Water and Ice Supply

The Five-Stage System makes up to 350 gallons of freshwater per day. Up to four high-capacity, RO membranes are used to provide the required water rate. It is supplied with a 14-gallon pressurized tank that holds 9-gallons of water. Two tanks may be used to increase the reserve to 18-gallons. The RO technology removes an average of 95% of the TDS. To further decrease the TDS, a de-ionizer cartridge can be installed as a post-filter option.

A booster pump is provided to produce a water pressure of 85 psi to the membranes. The pump is installed after the three pre-filters to reduce wear. A pressure switch in the line to the tank will turn on the pump when the tank pressure is 25 psi and off at 40 psi and is also adjustable. A 0-160 psi pressure gauge indicates the pressure to the inlet of the membrane. The overall duty cycle of the pump is 50%.

The unit can be wall-mounted or floor-standing with an optional stand. The stand is made of powder-coated steel and bolts to the underside of the bracket.

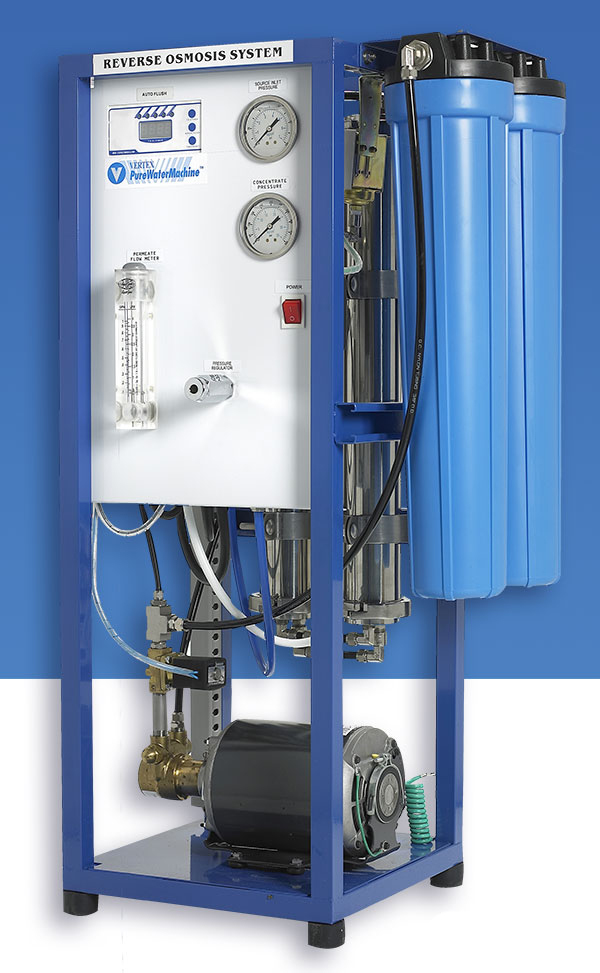

For whole facility supply

Built on a sturdy free-standing powder-coated steel frame, these use commercial-size RO membranes that typically remove 95% of the TDS. These systems are designed to handle up to 2500 ppm TDS, with an estimated 3-year life for the RO membrane. All models come with sediment and carbon pre-filters as a safety measure. Pretreatment is required by the user for the larger flow rates, and in the case of hard water.

Features:

• TFC reverse osmosis membranes with stainless steel housings
• Positive displacement pump with motor
• Feed water solenoid valve
• Product water flow meter, product water TDS sensor
• Brine control with manual needle valve
• Pressure gauges for supply water and pump inlet
• Membrane flush system
• Low pressure shut down switch
